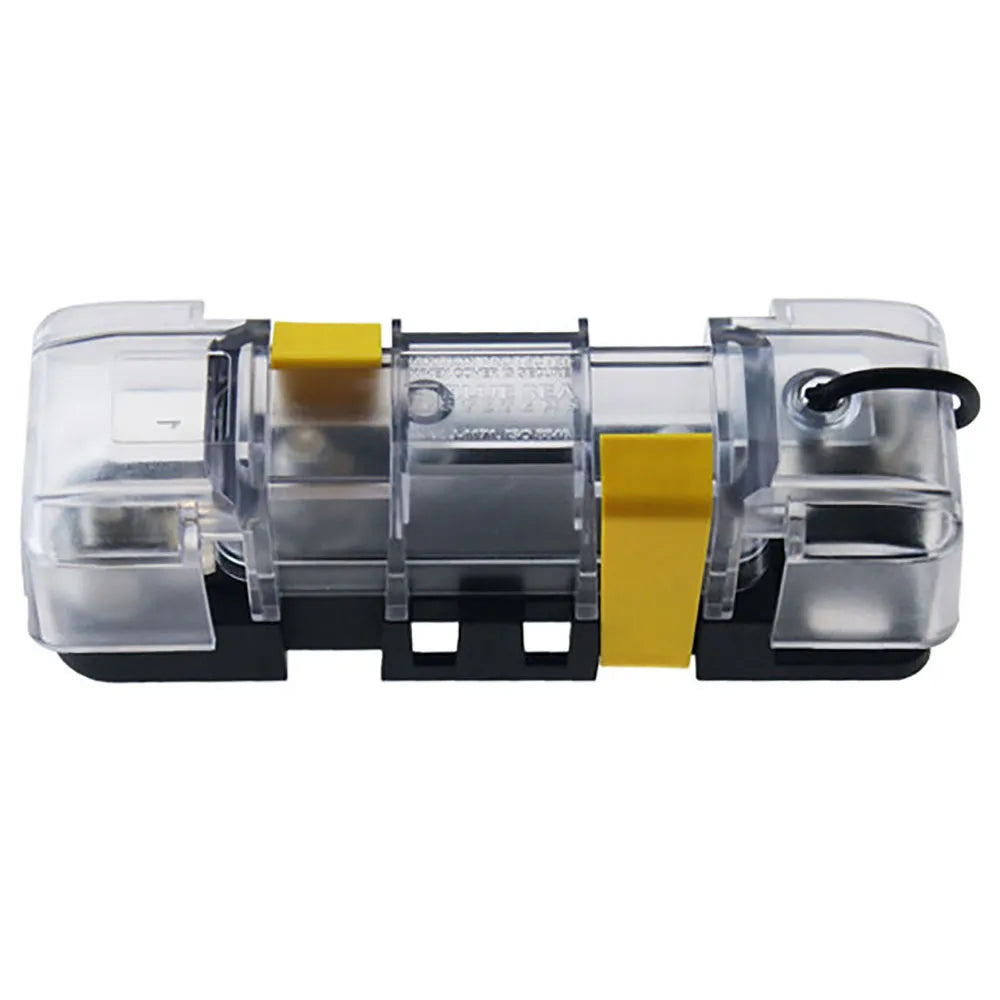

Blue Sea Systems Fuse Block Safety Midi (Bulk)

Blue Sea Systems Fuse Block Safety Midi (Bulk)

£25.91 GBP
£25.91 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Ignition protected for installation aboard gasoline or diesel powered boats
  • Sealed cover protects fuses from the harsh marine environment
  • Insulating cover satisfies ABYC/USCG insulation requirements
  • Cover breakouts allow wire access in any direction
  • 200A maximum with 4/0 cable
  • Accepts Blue Sea Systems Square Format standard or custom label
  • Fuses sold separately
  • Maximum Amperage: 200A
  • Maximum Voltage: 32V DC
  • Stud Size: M8 x 1.25
  • Fuse Screw: M5 x 0.8
  • Recommended Screw Torque: 27 in-lb (3.05 N·m)
  • Recommended Stud Torque: 120 in-lb (13.56 N·m)
  • Ring Terminal Size: M8 (5/16")
  • Weight: 0.15lb (0.07 kg)
