BLUE SEA FUSE BLOCK CLASS T IGNITION PROTECTED 110 - 200A

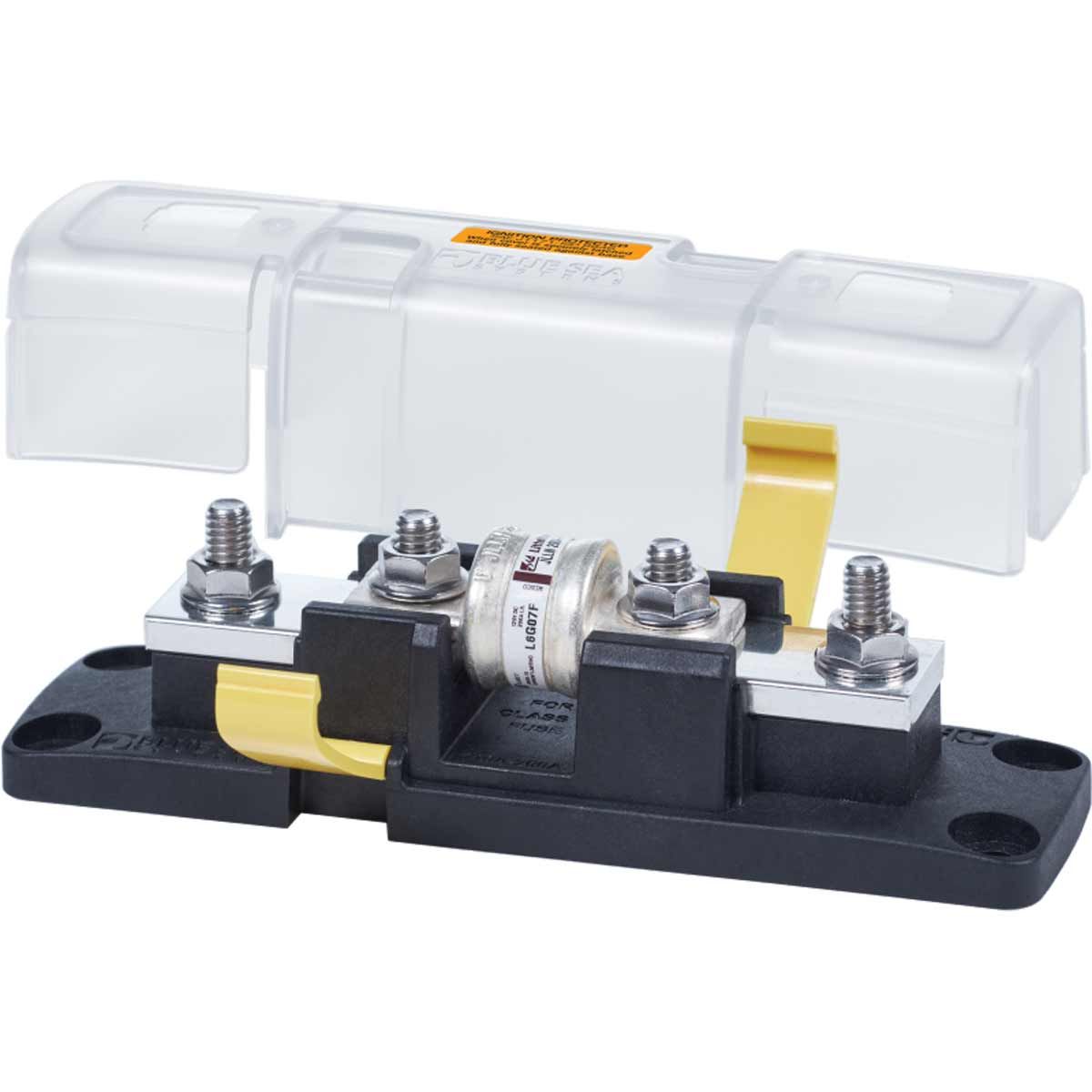

Blue Sea Class T Fuse Block 5007100 with insulating cover suitable for 110A to 200A. This fuse block allows the use of Class T fuses for fast acting circuit protection of inverters and other electronics. Featuring a four stud design which provides ample access around connecting stud to install large cable lugs without obstruction from the fuse.

- Insulating cover satisfies ABYC/USCG insulation requirements

- Cover breakouts allow wire access in any direction

- Stud design ensures secure fuse mounting even with high heat

- Stainless steel studs provide resistance to corrosion and high torque

- One-piece stainless flange nuts ensure safe and secure connections

- UL 94-V0 base resists high heat

- Ignition Protected

Cable Size: Up to 4/0 AWG

Ignition Protected: Yes

Maximum Amperage: 160A

Maximum Voltage: 160V DC

Fuse Mounting Blocks: Tin-Plated Copper

Maximum Torque: 190 in-lb (21.47 Nm), 72 in-lb (8.13 Nm)

Mounting Fastener Size: 1/4" or M6 Hardware

Terminal Stud Size: 1/4"-20 (M6)

Weight: 0.5 kg (1.10lb)

Approvals: Ignition Protected, ISO 8846 Marine & SAE J1171 Marine
