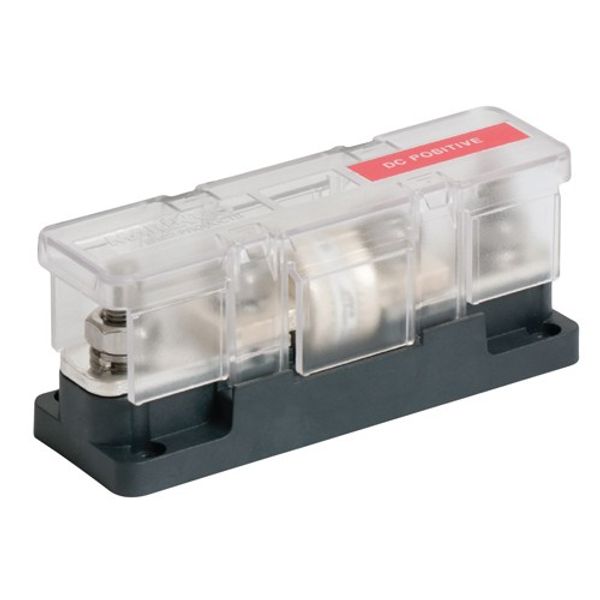

BEP CLASS T FUSEHOLDER 225 - 400A

PRO INSTALLER CLASS-T FUSE HOLDERS

Class-T fusing provides the ultimate protection for high power circuits, and where extremely fast fuse blow characteristics are required. Modern battery technologies such as Mastervolt Lithium Ion or AGM are capable of very high short circuit currents which may be beyond the interrupt rating of standard circuit breakers and other types of fuse. Two sizes of Pro Installer Class-T Fuse holder are available which accommodate fuses from 225-400 Amps, and 450-600 Amps respectively.

Specifications:

Cable connection studs: 10mm (3/8") studs

Fuse mounting studs: 10mm (3/8") 225-400A holder, 12mm (1/2") 450-600A holder

Fuse type: Class-T (JLLN / TJN / A3T)

Maximum amperage: Determined by fuse sizing, either 400A or 600A

50 VDC

High temperature, fibre reinforced plastic base provides strength and chemical resistance

Clear polycarbonate cover

Tinned CDA102 Copper conductors

Stainless steel studs, washers and nuts for longevity in the marine environment

Metric threads
