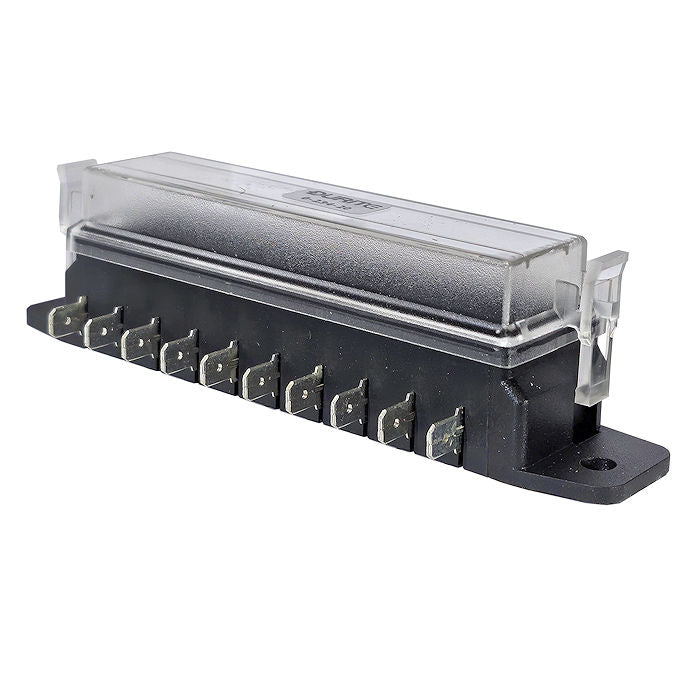

10-Way Fuse Box for Blade Type

Durite 0-234-20, 12 or 24 Volts DC automotive ten-way standard blade or spade fusebox with side entry 6.3mm blade terminal connection.

• Voltage 12V-24V DC (32V Maximum)
• 6.3mm blade terminal connections.
• Side entry terminals for flush panel mounting.
• Clear clip-off, clip-on holder cover.
• Two-hole fixing with approximate centres: 126mm.
• Supplied without fuses.
• Can be panel or bulkhead mounted.
• Pack Quantity: 1 piece.

Dimensions

• Height without cover: 25mm.
• Height including cover: 37mm.
• Width excluding terminals: 30mm.
• Width including terminals: 46mm.
• Overall length including mounting lugs: 41mm.

About The Standard 10 Blade Fuse Holder

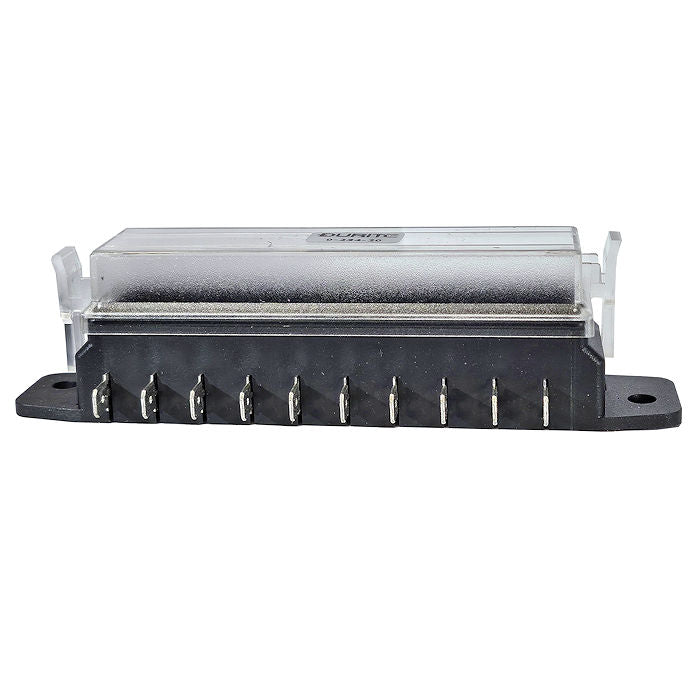

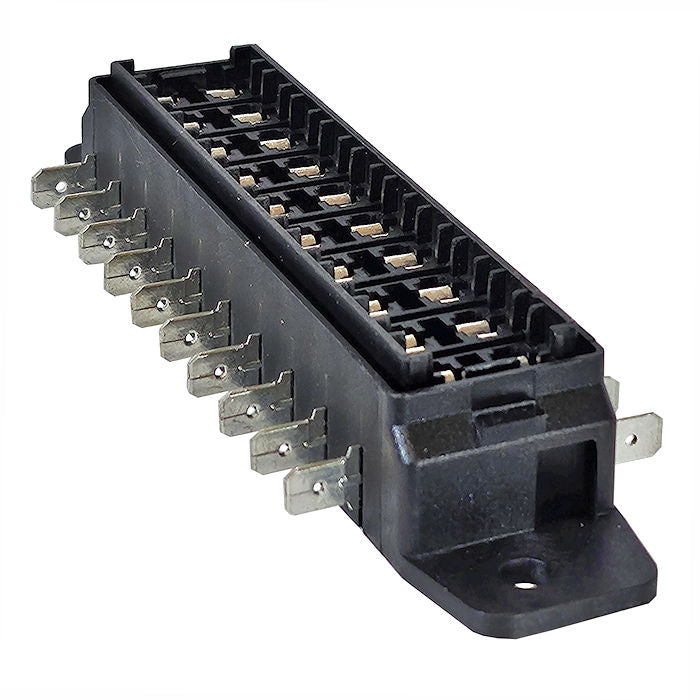

 The standard 10-way 'side entry' fuse holder fits flush to the panel when fixed, it allows cable side entry fixing via the 6.3mm terminals on either side.

 The medium-sized and most popular of the automotive blade fuse family, the standard blade fuses offer circuit load protection and have a wide variety of fuse box and inline fuse holder solutions.
